FLONET FH30xx
Product annotation

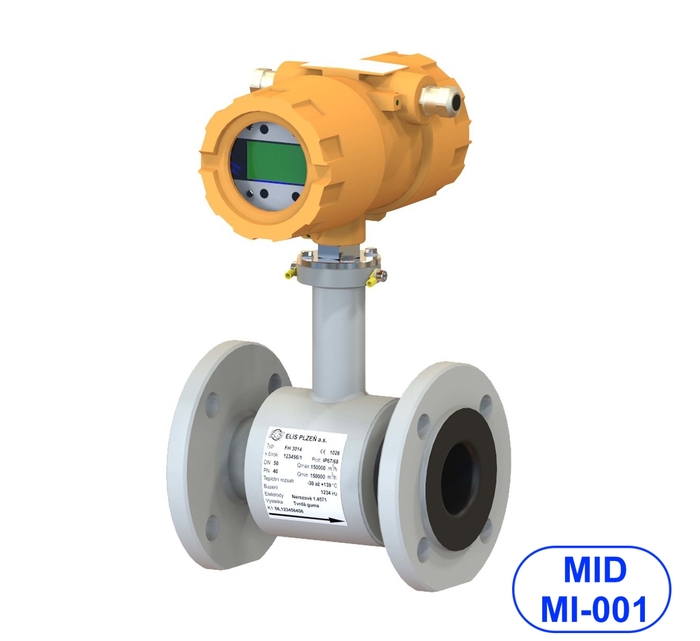

FLONET FH30xx electromagnetic flow meter is designed to measure the flow of electrically conductive liquids in waterworks, heating plants and the chemical or food industry. The measured data can be transferred to a control room using the RS485/MODBUS RTU.
Download:
FLONET FH30xx electromagnetic flow meter
The new product line of electromagnetic flow meters has a completely new transmitter design. It is characterized by a wide measuring range R = 400 and newly this type of flow meter offers the possibility to communicate with the superior system using the RS485/MODBUS RTU line.
Advantages of electromagnetic flow meter FLONET FH30xx
- Wide range of dimensions: DN15 to DN1200 (3/4" to 48")
- Ability to measure in demanding applications with measuring range up to R = 400
- Bidirectional measurement with direction indication
- Possibility of compact or remote version and IP68 protection
- Temperature of the measured liquid up to 150°C (302°F)
- Variability of electrode material, lining material according to type of measuring liquid or customers request
- The flow meter does not contain any moving parts in the flow sensor and thus has minimal hydraulic losses
- Use of almost all types and materials of flanges or other types of connections
- Selection of a required electrical supply and electrical outputs
- Detection of empty pipeline
- Self-diagnostics and high reliability
- RS485/MODBUS RTU communication line
Above that the electromagnetic flow meter FLONET FH30xx
Thanks to its measuring accuracy, hygienic safety, long-term quality and stability, this popular FLONET FH30xx flow meter is one of the world's most recognized products with comparable to the products of world brands.
More information can be found here.
Do you need a flow meter FH30xx? Contact us!
Other our electromagnetic flow meters: FN20xx.1, FN50xx.1, FS10xx, FR10xx, FXx11x (for explosive environments)
